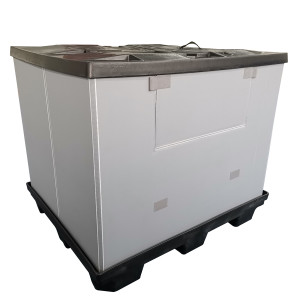

Heavy Duty PP Plastic Pallet Sleeve in one/four way solution

Name: Heavy Duty PP Plastic Pallet Sleeve in one/four way solution
Brand: Polyreflex
SKU: 18231958
Rating: 4.75 (10 reviews)

PP Plastic Pallets effective payload with heavy product

Categories	Plastic Pallet Sleeve System
Brand	Polyreflex
Model	PR-PS
Brand	Plastic Pallet Sleeve System
Provided Service	Die-cutting, CNC Engraveing,Sealing, Bending, Welding, Printing,Attaching Spunbond…
Custom Work	Color, Width, Length, Size, Weight, Packing, Processing
Certificate	RoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde Content.
Main Color	pallet sleeve: grey; lid & pallet: black
Main Application	logistics, packing, storing, moving
Update Time	2019-09-17
FOB port	Shanghai, China
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal, O/A
Download
Update Time	Dec 4,2024

Contact Now

Favorites

Detail Information

DETAIL INFORMATIONSPolyreflex Plastic Pallet Sleeve System

Plastic Pallet Sleeve System

800*600
1100*1100
1140*980
1150*1150
1200*800
1200*1000
1220*1140
1350*1150
1470*1150
1600*1150
2070*1150

Polyreflex Plastic Pallet Sleeve System

High Strength & Light Weight & Save Space

Pallet Sleeve Systems are an excellent and low-cost alternative to
molded bulk boxes. Use them for closed loop material handling and
as returnable and reusable bulk packaging. Their unique
construction makes them the strongest pallet sleeves in the
industry. It can save the transportation cost up to 40%-80% by the
recycled use of both lining and box.

Features

Non-bowing Maximum strength in all directions
Base and cover Easy to fold flat for space saving
Easy to assemble Stackable when used with pallet
No V.O.C. Emissions Eco-friendly - 100% recyclable
Nontoxic & Hypoallergenic Storage or return shipment
Resistant to chemical agents Light weight & waterproof
Printable in many colors

Product Available

			PR 0806 H 700	PR 1111 H 900	PR 1140 H 900	PR 1150 H 900	PR 1208 H 900	PR 1210-3 H 1000	PR 1210-8 H 1000	PR 1220 H 1000	PR 1350 H 1000	PR 1470 H 1000	PR 1600 H 1000	PR 2070 H 1000
Material	Pallet		Twin-sheet HDPE
	Reinforced		-	-	-	-	-	-	Steel Rod Reinforced	-	-	-	-	-
	Lid		Twin-sheet HDPE
	Sleeve		PP - 10mm - 3000g						PP Fiber-glass Reinforced - 11mm - 4000g	PP - 10mm - 3000g			PP -11mm -3500g
Weight in KG	Tare		17	31	30	32	29	33	56	38.5	40	44	52	61
	Payload		200	300	300	300	280	300	800	300	300	300	300	300
	Max Ballast		800	1200	1200	1200	1120	1200	1600	1200	1200	1200	1200	1200
Stack Layer	Static		1+3	1+3	1+3	1+3	1+3	1+3	1+1	1+3	1+3	1+3	1+3	1+3
Stack Layer	Dynamic		1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1
Dimension in mm	Outside	L	800	1100	1140	1150	1200	1200	1200	1220	1350	1470	1600	2070
		W	600	1100	980	1150	800	1000	1000	1140	1150	1150	1150	1150
		H	700	900	900	900	900	1000	1000	1000	1000	1000	1000	1000
	Inside	L	760	1060	1100	1110	1160	1160	1160	1180	1310	1430	1560	2030
		W	560	1060	940	1110	760	960	960	1100	1110	1110	1110	1110
		H	520	720	720	720	720	820	820	820	820	820	820	820
	Folded	L	800	1100	1140	1150	1200	1200	1200	1220	1350	1470	1600	2070
		W	600	1100	980	1150	800	1000	1000	1140	1150	1150	1150	1150
		H	238	238	238	238	238	238	238	238	238	238	238	238
Remark: Sleeve size can be customized according to your request if you have your own pallet/lid system, and gsm of pp honeycomb panel can be produced from 2500-4000gsm accroding to your design.

Stack layer

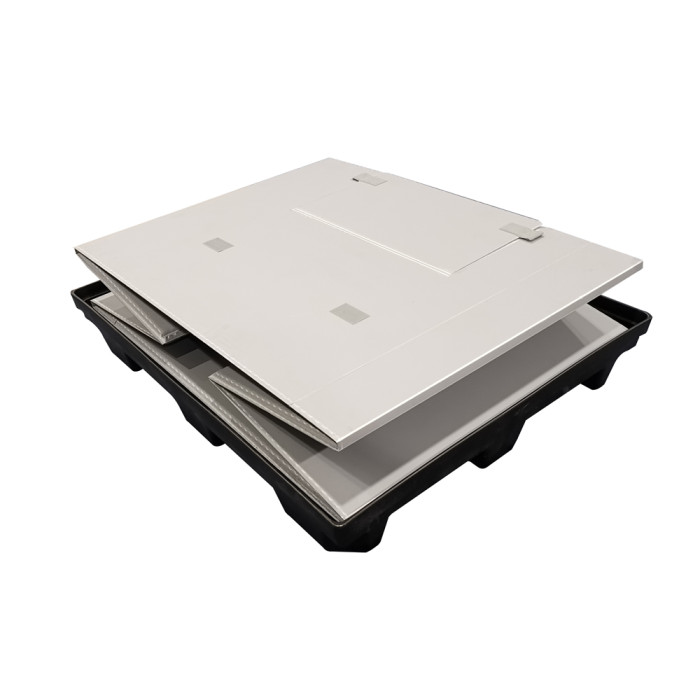

Folding Steps

PROCESSING WAYSPolyreflex Plastic Pallet Sleeve System

Die-cut

Sealing Edges

Opening Window

Creasing

Printing

Butt Welding

Polyreflex Plastic Pallet Sleeve System Application Examples

Polyreflex Plastic Pallet Sleeve System are excellent alternative to Wooden Pallet system,Heavy Duty Carton System etc

Lid and Pallet

Normal Lid

Normal Pallet

Steel Rod Reinforced Pallet

Lid and Pallet In Stock

Pallet Sleeve System Appearance

FAQ

Are you a trading company or a manufacturer?: more>

Polyreflex is a professional manufacturer with more than 15 years experiences, with five production sites located in China and one production site located in Vietnam.

Can you cut to size or print or thermoform?: more>

Of course we can. Polyreflex processing center has a variety of advanced processing equipment, and a well-trained and experienced technical team to meet the customized needs of customers, such as cutting, machining, vacuum forming, injection molding, blow molding, assembly, etc.

What is the payment method?: more>

T/T, L/C, PayPal, Western Union payment are available. Polyreflex is an Alibaba certified supplier, and it is also okay to place an order through Alibaba. https://polyreflex-cn.en.alibaba.com/

What is the lead time?: more>

Usually 15 to 20 days. The specific lead time is best to be confirmed after letting us know the order details. We have stock of plastic sheets to meet urgent needs, and we can also advance the delivery time for customers according to the production condition.
